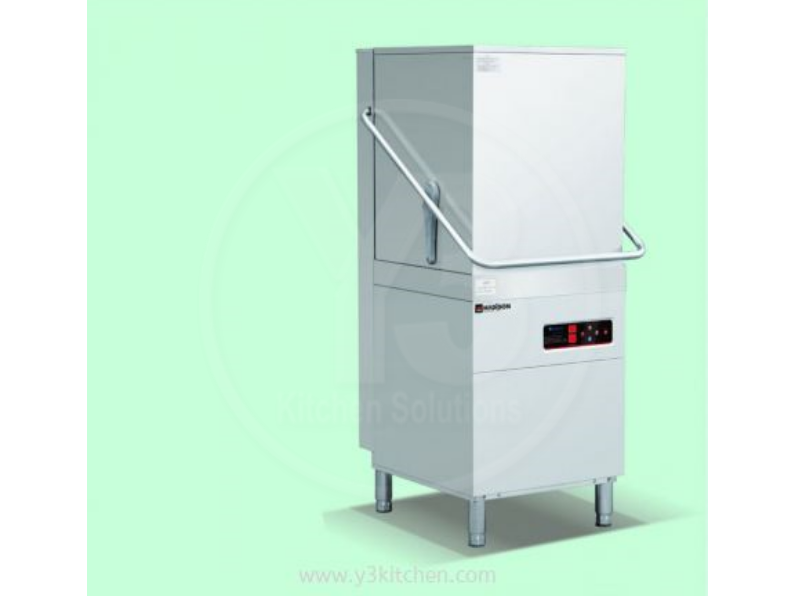

    Madison MA-DT Door Type Lift Dishwasher

    Madison MA-DT Door Type Lift Dishwasher

    Product Description

    Technical Data MA-DT6B (3Phase) MA-DT6B (1Phase)
    Wash Pump 1.25 HP =0.94kw 1.25HP = 0.94kw
    Wash Tank Heater 3kw 3kw
    Wash Tank Capacity 37 ltr 37 ltr
    Booster heater 3 x 4kw = 12kw 2 x 4kw = 8.0kw
    Booster Tank Capacity 12 ltr 12 ltr
    Rinse usage 2.5ltr / rack 2.5ltr / rack
    Loading Height 450 mm 450 mm
    Power Supply 415 V / 50Hz / 3Phase 240 V / 50Hz / 1Phase
    Machine Capacity 60 / 45 / 30 racks/hr 60 / 45 / 30 rack/hr
    Wash cycle Time 60 / 90 / 120 sec(selectable) 60 / 90 / 120 sec(selectable)
    Electrical Loading 13 kw / 20A(Cable 6mm) 9kw / 40A(Cable 4mm)
    Machine Net Weight 131Kg 131Kg
    Rack Size 500 mm x 500 mm 500 mm x 500 mm
    Dimension W 725mm x D 750mm x H 1522mm W 725mm x D 750mm x H 1522mm
